Product Description

Comments & Reviews

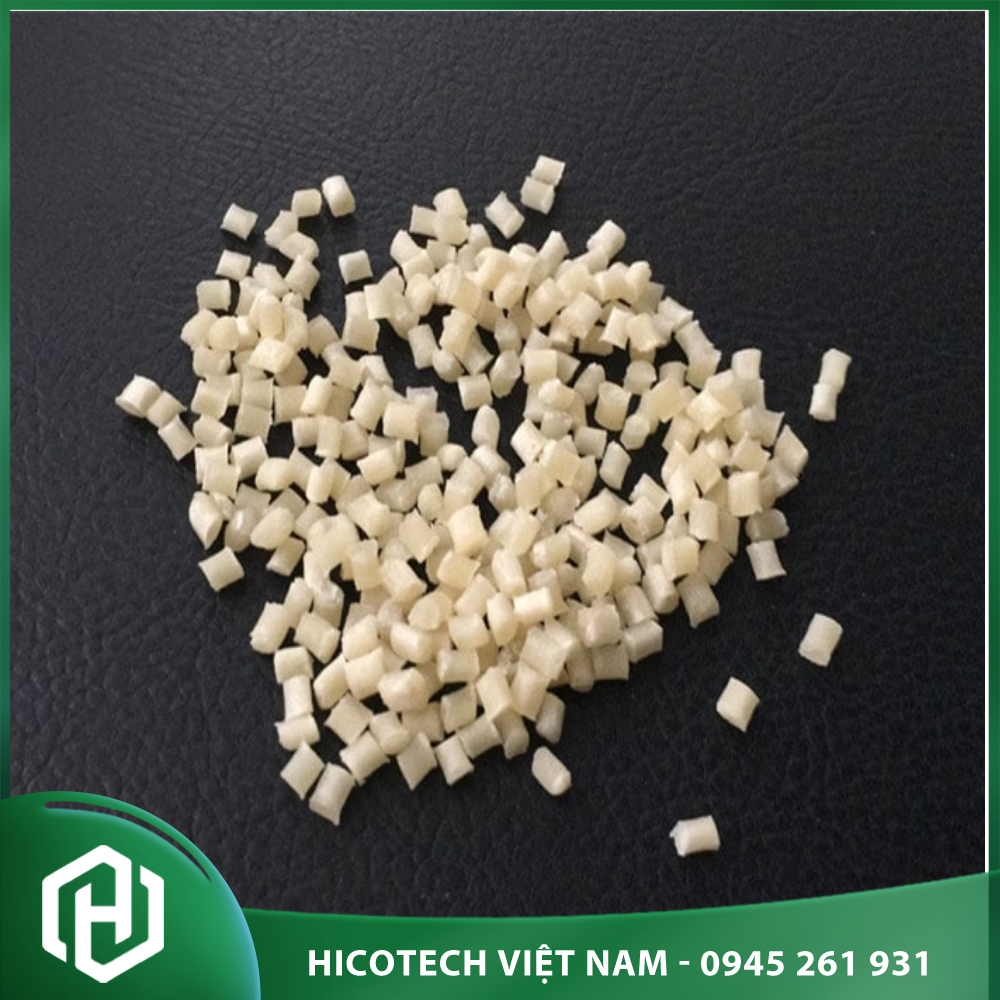

Veradel® AG-320 is a 20% glass fiber reinforced grade of polyethersulfone (PESU). Adding glass fiber to polyethersulfone substantially increases the rigidity, tensile strength, creep resistance, dimensional stability and chemical resistance of the material, while maintaining most of its other basic characteristics. The combination of structural properties and cost effectiveness make this resin an attractive alternative to metals in many engineering applications. This grade was formerly marketed as Radel® A PESU.

Techniacal data sheet

Physical Properties

Property	Typical Value	Unit	Test Method
Density / Specific Gravity	1.50	--	ASTM D792
Melt Mass-Flow Rate (MFR) (343°C/21.6 kg)	6.0	g/10 min	ASTM D1238
Molding Shrinkage - Flow	0.40 %	--	ASTM D955
Water Absorption (24 hr)	0.40 %	--	ASTM D570

Mechanical Properties

Property	Typical Value	Unit	Test Method
Tensile Modulus	5950	MPa	ASTM D638
Tensile Strength (Yield)	130	MPa	ASTM D638
Tensile Elongation (Break)	6.0	%	ASTM D638
Flexural Modulus	5520	MPa	ASTM D790
Flexural Strength	162	MPa	ASTM D790

Impact Properties

Property	Typical Value	Unit	Test Method
Notched Izod Impact	50	J/m	ASTM D256

Thermal Properties

Property	Typical Value	Unit	Test Method
Deflection Temperature Under Load (1.8 MPa, Unannealed, 3.18 mm)	196°C	°C	ASTM D648
CLTE - Flow (23 to 150°C)	3.1E-5	cm/cm/°C	ASTM D696
RTI Elec. (0.43 mm)	160°C	°C	UL 746B
RTI Str. (0.43 mm)	160°C	°C	UL 746B

Electrical Properties

Property	Typical Value	Unit	Test Method
Volume Resistivity	>1.0E+18	ohms·cm	ASTM D257
Dielectric Strength	17	kV/mm	ASTM D149
Dielectric Constant (60 Hz)	3.84	--	ASTM D150
Dielectric Constant (1 MHz)	3.84	--	ASTM D150
Dissipation Factor (60 Hz)	1.5E-3	--	ASTM D150
Dissipation Factor (1 kHz)	3.0E-3	--	ASTM D150
Dissipation Factor (1 MHz)	8.0E-3	--	ASTM D150
Arc Resistance	120	s	ASTM D495
Comparative Tracking Index (CTI)	PLC 5	--	ASTM D495
High Voltage Arc Tracking Rate (HVTR) (0.43 mm)	70	mm/min	UL 746A

Electrical Ignition Properties

Property	Typical Value	Unit	Test Method
Hot-wire Ignition (HWI) (0.43 mm)	61	s	UL 746A
Hot-wire Ignition (HWI) (0.80 mm)	67	s	UL 746A
High Amp Arc Ignition (HAI) (0.43 mm)	PLC 2	--	UL 746A

Flammability Properties

Property	Typical Value	Unit	Test Method
Flame Rating (0.43 mm, All)	V-0	--	UL 94
Glow Wire Flammability Index (0.43 mm)	960	°C	IEC 60695-2-12
Glow Wire Ignition Temperature (0.43 mm)	850	°C	IEC 60695-2-13

Injection Molding Properties

Property	Typical Value	Unit
Drying Temperature	149 to 177	°C
Drying Time	2.5 to 4.0	hr
Processing (Melt) Temp	343 to 399	°C
Mold Temperature	149 to 163	°C
Injection Rate	Fast	--
Back Pressure	0.345 to 0.689	MPa
Screw Compression Ratio	2.0:1.0	--

Product Functions

Good Color Stability
Paintability
High Gloss
Colorable
Good Surface Finish
Bromine Free
Low VOC
High ESCR (Stress Crack Resist.)
Good Dimensional Stability
Alkali Resistant
Acid Resistant
Alcohol Resistant
Mineral/Synthetic Oil Resistant
Detergent Resistant
Hydrolysis Resistant
Low Moisture Absorption
Good Impact Resistant
Low CLTE
Radiotranslucent
Transparency
Laser Weldable
Low Warpage
Good Processing Stability
Heat Sterilizable
Good Thermal Stability
High Heat Resistant

Applications of Veradel® AG-320 NT

Healthcare

Segments	Applications
Medical Devices	Non Invasive Devices
