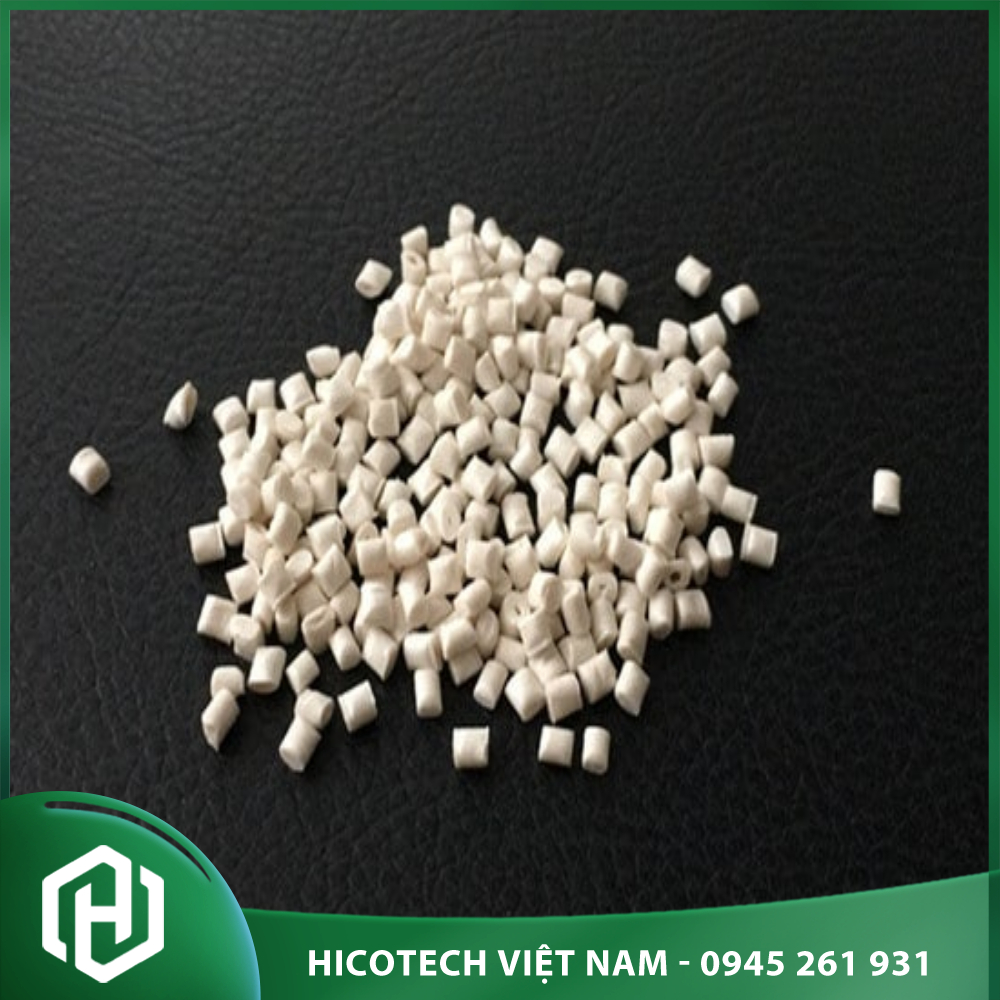

Radel® R-5100 is an opaque, general-purpose polyphenylsulfone (PPSU) resin designed for injection molding. Renowned for its exceptional toughness and hydrolytic stability, it surpasses other commercially available high-temperature engineering resins. Additionally, this material offers outstanding resistance to environmental stress cracking and a high deflection temperature. Inherently flame retardant, Radel® R-5100 also boasts excellent thermal stability and good electrical properties.

Technical data sheet

Property	Dry	Conditioned	Unit	Test Method
Density / Specific Gravity	1.30	--	--	ASTM D792
Melt Mass-Flow Rate (MFR)	16	--	g/10 min	ASTM D1238
Molding Shrinkage
- Flow	0.70	--	%	ASTM D955
- Across Flow	0.74	--	%	ISO 294-4
- Flow	0.58	--	%	ISO 294-4
Water Absorption
- 24 hr	0.37	--	%	ASTM D570
- 24 hr, 23°C	0.57	--	%	ISO 62
- Saturation, 23°C	1.2	--	%	Internal Method
- Equilibrium, 23°C, 50% RH	0.080	--	%	Internal Method

Mechanical

Property	Dry	Conditioned	Unit	Test Method
Tensile Modulus
--	2340	--	MPa	ASTM D638
--	2370	2370	MPa	ISO 527-1
Tensile Strength
- Yield	69.6	--	MPa	ASTM D638
- Break	69.6	--	MPa	ASTM D638
--	76.4	74.1	MPa	ISO 527-2
Tensile Elongation
- Yield	7.2	--	%	ASTM D638
- Break	60	--	%	ASTM D638
- Break	7.4	7.6	%	ISO 527-2
Flexural Modulus
--	2410	--	MPa	ASTM D790
--	2340	--	MPa	ISO 178
Flexural Stress
--	75.0	--	MPa	ISO 178
- Yield	91.0	--	MPa	ASTM D790
Compressive Modulus	1730	--	MPa	ASTM D695
Compressive Strength	98.9	--	MPa	ASTM D695
Shear Strength	62.7	--	MPa	ASTM D732
Poisson's Ratio	0.42	--	--	ASTM E132

Impact

Property	Dry	Conditioned	Unit	Test Method
Charpy Notched Impact Strength	56	53	kJ/m²	ISO 179
Charpy Unnotched Impact Strength	No Break	No Break	-	ISO 179
Notched Izod Impact	690	-	J/m	ASTM D256
Unnotched Izod Impact	No Break	-	-	ASTM D4812
Tensile Impact Strength	399	-	kJ/m²	ASTM D1822

Thermal

Property	Dry	Conditioned	Unit	Test Method
Deflection Temperature Under Load				ASTM D648
0.45 MPa, Unannealed	214	-	°C
1.8 MPa, Unannealed	207	-	°C
Glass Transition Temperature	220	-	°C	ASTM E1356
CLTE - Flow	5.6E-5	-	cm/cm/°C	ASTM D696
Thermal Conductivity	0.35	-	W/m/K	ASTM C177

Electrical

Property	Dry	Conditioned	Unit	Test Method
Volume Resistivity	9.0E+15	-	ohms·cm	ASTM D257
Dielectric Strength	14	-	kV/mm	ASTM D149
Dielectric Constant				ASTM D150
60 Hz	3.44	-	-
1 kHz	3.40	-	-
Comparative Tracking Index		160	V	IEC 60112

Flammability

Property	Dry	Conditioned	Unit	Test Method
Flame Rating				UL 94
0.75 mm, All colors, UL file E36098	V-0	-	-
0.8 mm	V-0	-	-
Oxygen Index	38	-	%	ASTM D2863

Optical

Property	Dry	Conditioned	Unit	Test Method
Refractive Index	1.672	-	-	ASTM D542

Injection

Property	Dry	Unit
Drying Temperature	149	°C
Drying Time	2.5	hr
Suggested Max Moisture	0.050	%
Rear Temperature	321	°C
Middle Temperature	349	°C
Front Temperature	349	°C
Processing (Melt) Temp	343 to 388	°C
Mold Temperature	138 to 163	°C
Back Pressure	0.345 to 0.689	MPa
Screw Compression Ratio	2.2:1	-

Product Functions

Black Laser Transparent
Good Color Stability
Paintability
High Gloss
Colorable
Good Surface Finish
Bromine Free
Low VOC
High ESCR (Stress Crack Resist.)
Good Dimensional Stability
Alkali Resistant
Acid Resistant
Alcohol Resistant
Mineral/Synthetic Oil Resistant
Detergent Resistant
Hydrolysis Resistant
Low Moisture Absorption
Non Flammable
Flame Retardant
Good Impact Resistant
Low CLTE
Radiotranslucent
Transparency
Radiation (Gamma) Resistant
Laser Weldable
Low Warpage
Good Processing Stability
Glass Fibre Reinforcement
Autoclave Sterilizable (steam)
E-beam Sterilizable
Radiation Sterilizable
Ethylene Oxide Sterilizable
Heat Sterilizable
Good Thermal Stability
High Heat Resistant

Applications of Radel R-5100 NT15

Home Personal Care

Segments	Applications
Home & Hygiene	Air & Water Care

Electronics

Segments	Applications
Semiconductor	Fab Process Equipment

Healthcare

Segments	Applications
Medical Devices	Implantable Devices
Hemodialysis Devices	Membranes

Aerospace

Segments	Applications	End uses
Fixed Wing Aircraft	Interiors
Advanced Air Mobility	Air Taxis / Heavy Goods Cargos	Interiors
