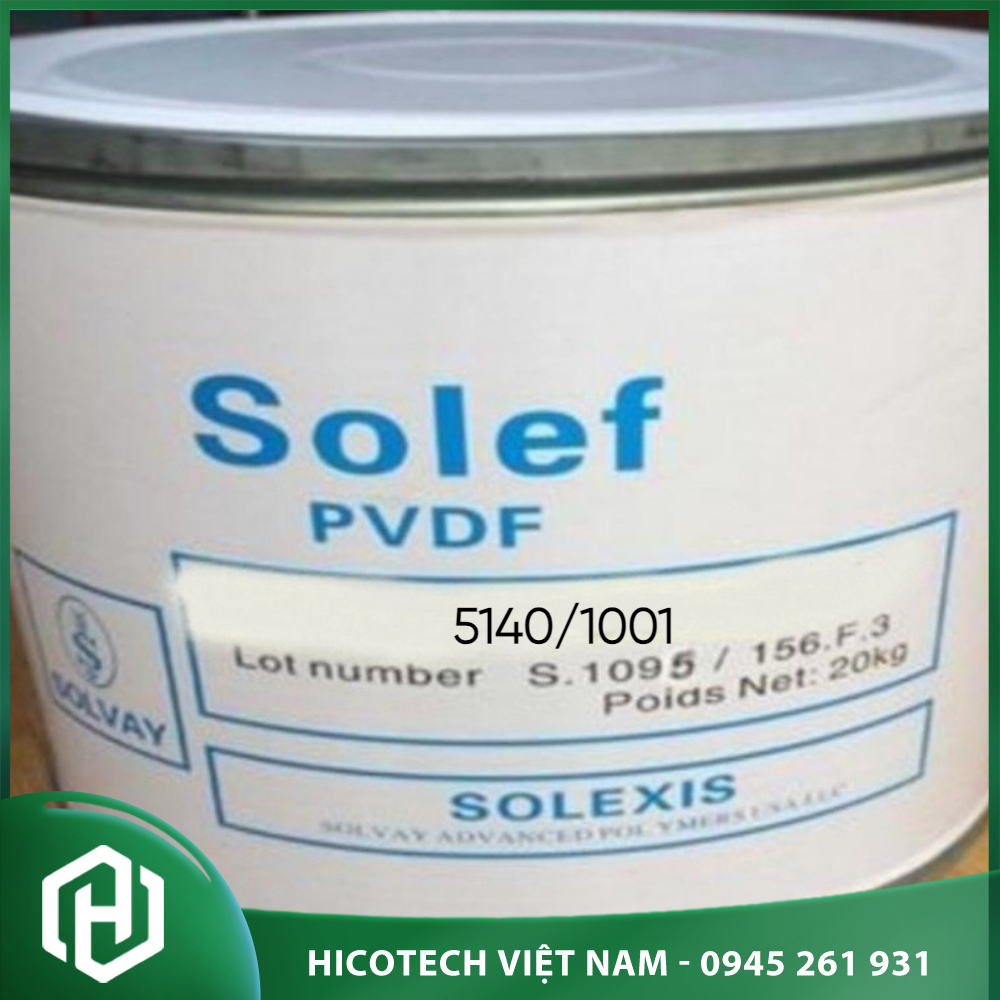

Solef® 5140/1001

Leave your phone number, we will call you back immediately

Product Description

Comments & Reviews

Solef® 5140 PVDF is an ultra high viscosity grade that gives superior adhesion and ultra high viscosity at reduced binder content, ideal for its use as a binder in Lithium Ion Batteries.

Technical data sheet

Physical

Property	Typical Value	Unit	Test Method
Density	1.75 to 1.78	g/cm³	ISO 1183
Water Absorption (24 hr, 23°C)	< 0.20	%	ASTM D543

Mechanical

Property	Typical Value	Unit	Test Method
Tensile Modulus (23°C)	1000 to 1700	MPa	ASTM D638

Thermal

Property	Typical Value	Unit	Test Method
Glass Transition Temperature	-40.0	°C	DSC
Melting Temperature	160 to 168	°C	ASTM D3418
Peak Crystallization Temperature (DSC)	135 to 145	°C	ASTM D3418
Heat of Fusion	40.0 to 50.0	J/g	ASTM D3418
Thermal Stability	> 375	°C	TGA

Electrical

Property	Typical Value	Unit	Test Method
Surface Resistivity	> 1.0E+14	ohms	ASTM D257
Volume Resistivity	> 1.0E+14	ohms·cm	ASTM D257

Additional Information

Property	Typical Value	Unit
Intrinsic Viscosity	0.33 – 0.43	l/g

Product Functions

Low VOC
High Purity
High ESCR (Stress Crack Resist.)
Sour Gas Resistant
Acid Resistant
Mineral/Synthetic Oil Resistant
Detergent Resistant
Hydrolysis Resistant
Low Moisture Absorption
Piezoelectric Properties
Flame Retardant
Fatigue Resistant
High Hardness
High Stiffness
Creep Resistant
Good Impact Resistant
Low CLTE
UV Resistant
Radiation (Gamma) Resistant
Good Processing Stability
Autoclave Sterilizable (steam)
E-beam Sterilizable
Radiation Sterilizable
Ethylene Oxide Sterilizable
Heat Sterilizable
Good Thermal Stability
High Heat Resistant

Chemical categories

Chemical category	Chemical family	Chemical product
Thermoplastic polymers	Fluoropolymers	PVDF (Polyvinylidene fluoride)

Applications of Solef® 5140/1001

Oil & Gas

Segments	Applications
Equipment & Parts	Piping & Tubing
