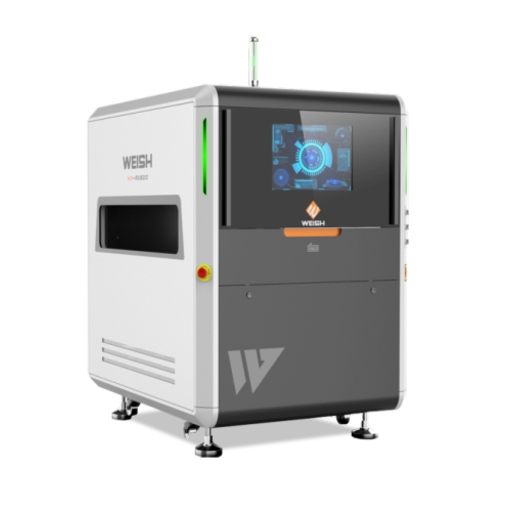

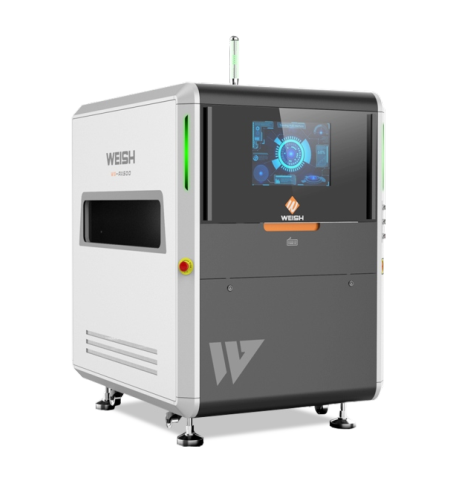

DIP online AOI WS-AX510 is a WEISH product manufactured by DongGuan WEISH Electronic Technology Co.,Ltd, Dongguan, China. Weish lnverted Camera AOI WS-AX510 series is installed at the bottom side and is very suitable for inline postwave soldering inspection of solder joint without the need to flip the board.
Product Features of DIP online AOI WS-AX510:
☆ Powerful algorithm logic for post wave soldering inspection of SMT and odd shape components.
☆ Fast programming, auto-generate thru hole inspection window withone-click function.
☆ Automatic compensation for PCB deformed by high temperatureeffects makes our machine just as suitable for FPC.
☆ Optical fiber sensor is featured to trigger board drop alarm.
☆ Pulley type conveyor is more resistant to high temperature, dirt andheavy loads.
Features & Functions of DIP online AOI WS-AX510:
☆ Centralized Management
Adopting centralized management of AOl in production line can realizeremote judgement, offline programming and real-time debugging update.
☆ SPC Alarm Function
Real-time production quality monitoring can be achieved thru' timelyfeedback of abnormal situation, thus, preventing defects flowing thru.
☆ Automatic Program Switch Through Barcode Scanning
Auto width adjustment is a standard feature and is achieved by simplyreading the PCB's barcode. At the same time, it supports MES command.
☆ Multiple Repair Stations can be Linked to a Single Repair Station
One operator can handle multiple machines repair stations, thus, improvingthe repair process and saving manpower.
Core Technology and Advantages of DIP online AOI WS-AX510:
☆ Automatic Pin Programming
Big data + Al deep learning algorithm to identify componentscan be done with one-click.
☆ AlIntelligent Discrimination
With big data analysis, our Al deep learning algorithm canautomatically identify errors and reduce manual intervention.
☆ Three-level Positioning Technology
WEISH three-level positioning technique effectively solvefalse call and escape due to board deformation, improvingdetection rate and the accuracy of inspecting thru' hole defects.
☆ Detection Parameters Directly Aligned to IpC Standards
Our algorithm can calculate offsets based on IPC standardsresulting in more reliable inspection.
Maximum Component Side Overhang (IPC-A-610-G Class 3) :Less than 25% of the component termination width or 25% of thepad width whichever is less.
☆ Powerful Wave Soldering Algorithm for Through Hole Inspection
Powerful wave soldering algorithm for inspection of manuallyor machine inserted through hole components
Product Specification of DIP online AOI WS-AX510:
Product Model |
WS-AX510 |
|
Image System |
Camera |
5MP/12MP Industrial camera |
Resolution |
5MP camera: 24μm, 15μm; 12MP camera: 15μm |
|
FOV |
6049mm( 5MP, 124μm); 6045mm(12MP,15μm) |
|
Lens |
Telecentric lens |
|
Lighting |
4 color ring shape LED (RGBW) |
|
Movement Structure |
X/Y Movement |
AC Servo |
Width Adjustment |
Automatic |
|
Transport Type |
Roller pulley |
|
Board Loading Direction |
→Right or Right→(at point of order) |
|
Fixed Rail |
1st Rail |
|
Hardware Configuration |
Operating System |
Win 10 |
Communication |
Ethernet, SMEMA |
|
Power Requirement |
Single phase 220V,50/60Hz,5A |
|
Air Requirement |
0.4-0.6Mpa |
|
Conveyor Height |
900±20mm |
|
Equipment Dimensions |
L1170D16801580mm(without tower light) |
|
Equipment Weight |
700Kg |
|
PCB Size |
Size |
5050-510510mm |
PCB Weight |
≤30kg |
|
Component Clearance |
Top clearance 120mm adjustment, Bottom clearance 25-50mm adjustable |
|
Clamping Edge |
3.0mm |
|
Inspection Criteria |
Component |
Wrong Component, Missing, Polarity, Misalignment, Reverse, IC Lead Bend, Foreign Material, Tombstone, etc |
Solder Joint |
No Solder, Insufficient Solder, Open Solder , Excess Solder, Solder Bridge, Solder Ball, etc. |
|
Inspection Component |
Lsl: 0.3mm pitch and above Others: Odd shape component |
|
Inspection Speed |
180-200ms/FOV |
