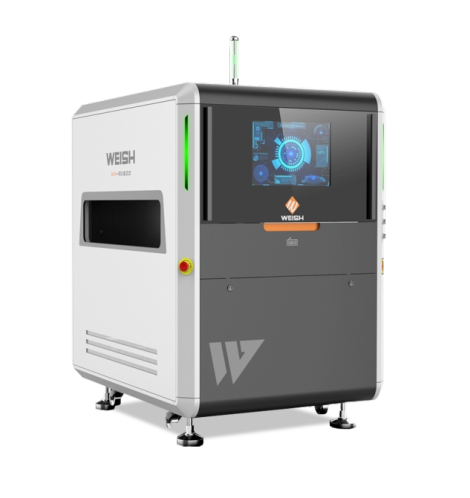

Double-sided AOI WS-AX520

Leave your phone number, we will call you back immediately

Mô tả sản phẩm

Bình luận & Đánh giá

Double-sided AOI WS-AX520 is a WEISH product manufactured by DongGuan WEISH Electronic Technology Co.,Ltd, Dongguan, China. Weish Double-sided WS-AX520 series provide a one-stop unmanned final inspection for simultaneous topand bottom inspection of PCBA and finished goods.

Product Features of Double-sided AOI WS-AX520:

☆ Unique feature is its ability to inspect on both sides of the PCBA simultaneously saving production floor space and investment.
☆ The dual cameras are synchronously positioned and asynchronous interlocking images are taken to avoid the interference of the upper and lower light sources.
☆ Pulley type conveyor can be selected vs the standard belt type , of which theformer is more resistant to high temperature, dirt and heavy loads.
☆ Weish proprietary Solder Pad Positioning Algorithm and FOV Assistedpositioning make detection of components more accurate.
CPU-specific algorithm for pins accurately captures various defects such aspin bending, pin deformation and missing pins.

Features & Functions of Double-sided AOI WS-AX520:

☆ Centralized Management

Adopting centralized management of AOl in production line can realizeremote judgement, offline programming and real-time debugging update.
☆ Double-side Barcode Binding

Traceability is enhanced thru' our system software, which canautomatically bind the barcode data as long as one side of the PCBAcarry a barcode.
☆ SPC Alarm Function

Real-time production quality monitoring can be achieved thru' timelyfeedback of abnormal situation, thus, preventing defects flowing thru.
☆ Automatic Program Switch Through Barcode Scanning

Auto width adjustment is a standard feature and is achieved by simplyreading the PCB's barcode. At the same time, it supports MES command.
☆ Major Defects Foolproof

Effectively prevent the outflow of critical components and critical defects
☆ Output Entire Board Photo

The entire board photo of component or non-component area can be savedfor the quality traceability purpose after the inspection is completed.

Core Technology and Advantages of Double-sided AOI WS-AX520:

☆ Intelligent Solder Pad Positioning + Entire FOV Assisted Positioning
With the use of Magic-ray's proprietary Solder Pad Positioning we cansignificantly reduce false calls that are caused by deformation of PCB afterwave soldering. This is even more pronounced for FPC.Our entire FOV assistedpositioning algorithm also helps to significantly reduce false calls due to PCBwarpage, silkscreen printing and interference cause by the board's legend
☆ Powerful Wave Soldering Algorithm for Through Hole Inspection
Powerful wave soldering algorithm for inspection of manuallyor machine inserted through hole components

Product Specification of Double-sided AOI WS-AX520:

Product Model		WS-AX520
Image System	Camera	5MP/12MP Industrial camera
	Resolution	5MP camera: 24μm, 15μm; 12MP camera: 15μm
	FOV	6049mm( 5MP, 124μm); 6045mm(12MP，15μm)
	Lens	Telecentric lens
	Lighting	4 color ring shape LED (RGBW)
Movement Structure	X/Y Movement	AC Servo
	Width Adjustment	Automatic
	Transport Type	Belt (Roller pulley optional)
	Board Loading Direction	→Right or Right→(at point of order)
	Fixed Rail	1st Rail
Hardware Configuration	Operating System	Win 10
	Communication	Ethernet, SMEMA
	Power Requirement	Single phase 220V，50/60Hz，5A
	Air Requirement	0.4-0.6Mpa
	Conveyor Height	900±20mm
	Equipment Dimensions	L1170D1608H1580mm(without tower light)
	Equipment Weight	900Kg
PCB Size	Size	5050-510510mm
	PCB Weight	≤30kg
	Thickness	0.6-6mm
	Component Clearance	Top clearance 25-85mm adjustment, Bottom clearance 25-80mm adjustable
	Clamping Edge	3.0mm
Inspection Criteria	Component	Wrong Component, Missing, Polarity, Misalignment, Reverse, IC Lead Bend, Foreign Material, Tombstone, etc
	Solder Joint	No Solder, Insufficient Solder, Open Solder , Excess Solder, Solder Bridge, Solder Ball, etc.
	Inspection Component	Chip: 03015 and above; Lsl: 0.3mm pitch and above Others: Odd shape component
	Inspection Speed	200-250ms/FOV

Currently, Hicotech is operating as a distribution agent for genuine WEISH products in Vietnam. Along with a technical team that advises and answers all customer questions related to the product, Hicotech is committed to providing customers with high quality products and the best support service on the market.
