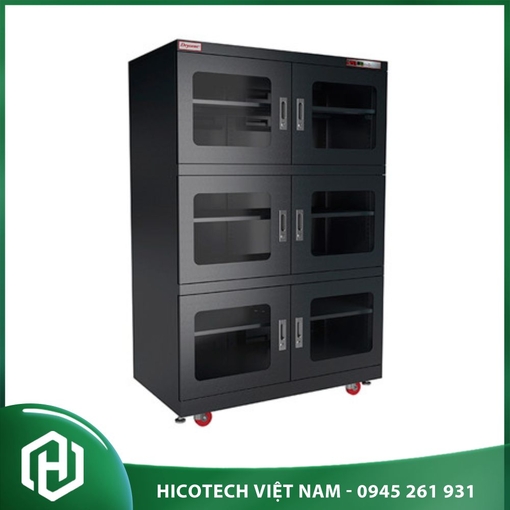

Introduction to Dryzone CF1-1200-6 Ultra Low Humidity Cabinet

The Dryzone CF1-1200-6 Ultra Low Humidity Dehumidifier is completely plug-and-play, maintaining stability at <1% RH. There is no need to set up control panel buttons. It is specially designed for MSD (Moisture Sensitive Devices) to comply with the IPC J-STD-033 standard. The CF series offers high humidity control, fast recovery time, and is equipped with an anti-static body structure, adjustable stand, casters, door lock, and a decimal digital display.

Technical data sheet of Dryzone CF1-1200-6

Product Model	CF1-1200-6
Humidity range	<1%RH (Auto)
Display precision	±3%RH, ±1°C
Outside dimension	W1200xD695xH1820mm
Inside dimension	W1198xD645xH1618mm
Capacity	1250L
Shelves	5 units
Color	Black
Voltage	110V/220V (voltage in advance)
Structure	1mm thick carbon steel with paint
Door	Handles, airtight magnetic sealers and reinforced glass
Grounding wire	1MΩ (940mm long)
ESD Paint	106--109Ω (surface resistance)
Power consumption	Ave. 135Wh; Max. 425W

The best performance of the dry cabinet is achieved under ambient conditions with a temperature below 30°C and a relative humidity below 60% RH.

Optional accessories of Dryzone CF1-1200-6 Ultra Low Humidity Dehumidifier, RH <1%

Dryzone dehumidifier accessories are used to add functionality to Standard and Upgrade dehumidifiers allowing customization of the dry cabinet to suit your needs.

	ESD Safe: 106~109Ω dry cabinet body can be normal white or ESD black.
	Stainless steel cabinet: (SUS #304) N2 cabinet body can be made of SUS #304 if you want.
	Sliding drawer: We can make a normal white shelf, ESD shelf, SUS shelf or other kinds of sliding drawer if you need.
	Nitrogen Flowmeter: Nitrogen flow meter can be added to N2 cabinet to adjust N2 filling flow, and the position of Flowmeter can be selected as you need.
	Warning light and alarm: It can be added to the cabinet or HT-5D flow meter for customers to easily monitor the humidity and temperature status of the equipment.
	ESD Wheel: You can add ESD wheel if you need this function.
	Nitrogen Loading Module (qdn): The QDN module can be added to your dehumidifier to the dehumidifier to a Nitrogen cabinet if you want fast recovery times or low humidity.
