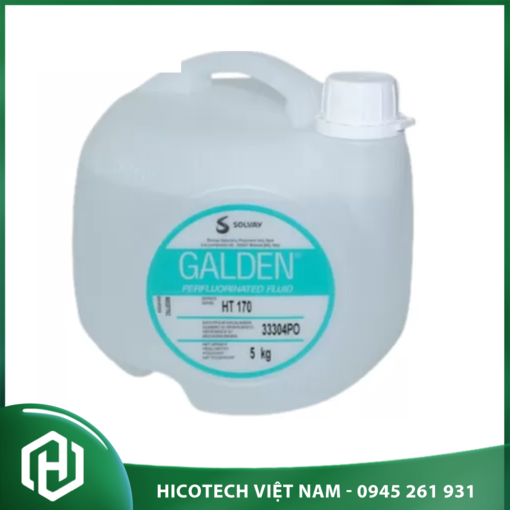

Galden HT170

Galden HT170 is highly effective as a heat transfer fluid, offering exceptional thermal and chemical stability, strong dielectric performance, and excellent compatibility with metals, polymers, and elastomers. It also ensures a high degree of safety, as it is non-explosive, non-toxic, and resistant to ignition.

Technical data sheet of Galden HT 170

Physical

Property	Typical Value	Unit
Average Molecular Weight	760	amu
Density	1.77	g/cm³
Kinematic Viscosity	1.80	cSt
Solubility
of air	26.0	ml gas/100 ml liquid
of water	< 10.0	wppm
Surface Tension	18	dyne/cm
Vapor Pressure	0.8	torr

Thermal

Property	Typical Value	Unit
Boiling Point	170	°C
Heat of Vaporization - at Boiling Point	16.0	cal/g
Pour Point	-97	°C
Specific Heat Capacity (25°C)	0.23	cal/g/°C

Electrical

Property	Typical Value	Unit
Dielectric Constant	1.94
Dielectric Strength - 2.54mm gap	40	kV
Dissipation Factor - 1 kHz	2.0E-4
Volume Resistance	1.510E15	ohms-cm

Optical

Property	Typical Value	Unit	Test Method
Refractive Index	1.28		ASTM D542

Additional Information

Property	Typical Value	Unit
Thermal Conductivity	0.065	W/m°C
Coefficient of Expansion	0.001	cm³/cm³°C

Key features of Galden HT 170

Bromine Free
Low VOC
High Purity
Chlorine Resistant
High ESC (Stress Crack Resistant)
Sour Gas Resistant
Good Glycol Resistance
Biofuel Resistant
Fuel Resistant
Alkali Resistant
