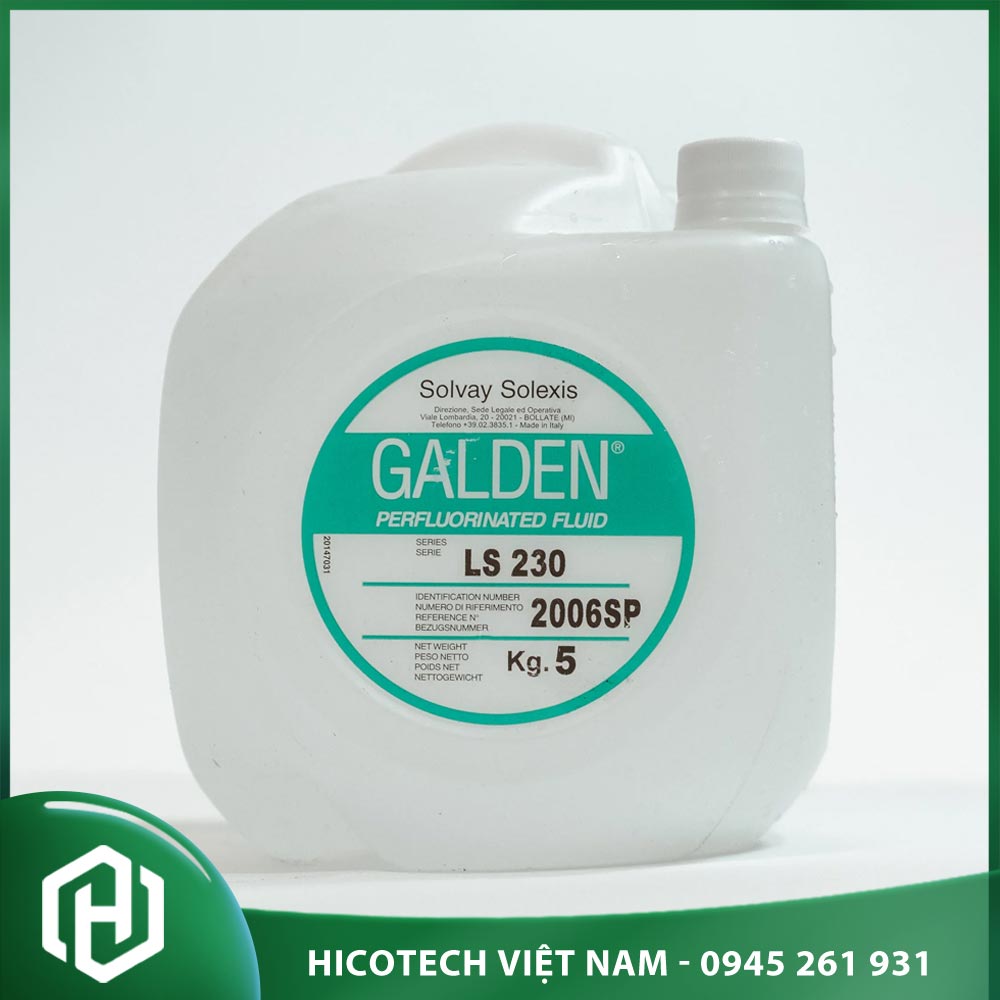

Galden LS 230

Leave your phone number, we will call you back immediately

Product Description

Comments & Reviews

Galden LS 230 is a fluorocarbon liquid, a chemical compound containing fluorine and carbon atoms, commonly used in various industrial applications, particularly for the Vapor Phase Soldering process. It has many characteristics, such as temperature stability, no residue formation after use, and safety at high temperatures, which help optimize the soldering process in the electronics industry and the production of electronic products.

Technical data sheet

Physical

Property	Typical Value	Unit
Average Molecular Weight	1020	amu
Density (25°C)	1.82	g/cm³
Kinematic Viscosity (25°C)	4.40	cSt
Surface Tension	20	dyne/cm
Vapor Pressure (25°C)	3.4	Pa

Thermal

Property	Typical Value	Unit
Boiling Point	230	°C
Heat of Vaporization - at Boiling Point	63.0	J/g
Specific Heat Capacity (25°C)	0.23	cal/g/°C

Electrical

Property	Typical Value	Unit
Dielectric Constant	2.10
Dielectric Strength - 2.54mm gap	40	kV
Volume Resistance	1E15	ohms·cm

Additional Information

Property	Typical Value	Unit
Thermal Conductivity (25°C)	0.07	W/m°C
Coefficient of Expansion	0.0011	cm³/cm³°C

Product Functions

Bromine Free
Low VOC
High Purity
Chlorine Resistant
High ESCR (Stress Crack Resist.)
Sour Gas Resistant
Good Glycol Resistance
Bio-Fuel Resistant
Fuel Resistant
Alkali Resistant
Acid Resistant
Alcohol Resistant
Mineral/Synthetic Oil Resistant
Detergent Resistant
Hydrolysis Resistant
Low Moisture Absorption
Dielectric Properties
Non Flammable
Radiotranslucent
Transparency
UV Resistant
Radiation (Gamma) Resistant
Good Thermal Stability
High Heat Resistant

Applications of Galden LS 230

Electronics

Segments	Applications	End uses
Semiconductor	Fab Process Materials	Heat Transfer/Vapor Soldering
