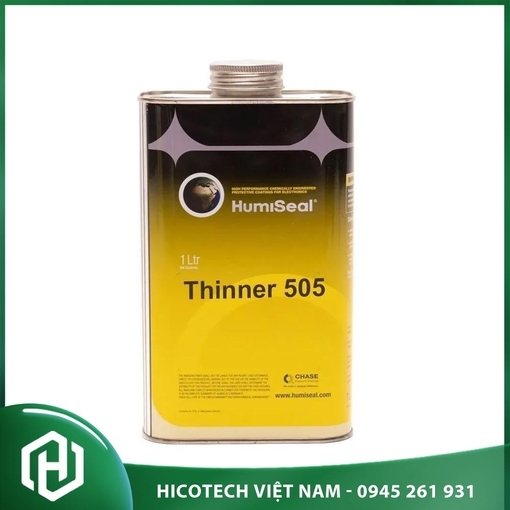

Humiseal thinner 505 General Description
Humiseal thinner 505 is a slow drying thinner not interfering with urethane reaction performed by a wide range of evaporation. It is recommended to use in summer season when the temperature in the working place exceeds the room temperature.
Advantages when using Humiseal thinner 505
- Quickly reduces the consistency of the lacquer to the required degree.
- Improves film smoothness of lacquers when applied either by spray or dipping thus extending excellent finish.
- Lacquer dries without blushing, resin blush, pinholing and other surface defects.
- No “orange peel” developed after the evaporation of P.U. Thinner, and therefore increases the tensile strength of the film along with its gloss.
Technical data of Humiseal thinner 505 (TDS)
Test | ASTM Standard | Result |
---|---|---|
Appearance | - | Visual Clear |
Specific Gravity | ASTM D 1475 | 0.87 kg/li. |
Colour (Saybolt) | ASTM D 1209 | +30 |
Boiling Point | ASTM D 850 | 1000C |
Copper Corrosion | ASTM D 849 | None |
Acidity | ASTM D 1613 | < 0.03 % |
Non-aromatics | - | 40% |
Flash Point | IP 170 | 18°C |
The applications of Humiseal Thinner 505
The applications of Humiseal Thinner 505 include:
Coating Viscosity Adjustment:
- Humiseal Thinner 505 is primarily used to adjust the viscosity of Humiseal conformal coatings.
- It allows users to achieve the desired coating thickness and consistency for optimal performance.
Spraying and Atomization:
- Thinning the conformal coating using Humiseal Thinner 505 can facilitate the spraying and atomization process.
- It helps create a smooth and even coating layer, especially when using automated coating equipment.
Enhanced Flow and Leveling:
- Adding Humiseal Thinner 505 to the coating formulation can improve its flow and leveling properties.
- This is particularly useful for ensuring uniform coverage and reducing the presence of uneven or thick areas in the coating.
Reduced Air Trapping:
- Thinning the coating with Humiseal Thinner 505 can help minimize the risk of air trapping during the application process.
- This leads to a more consistent and defect-free coating.
Optimized Penetration:
- In some applications, such as conformal coatings for intricate or complex electronic assemblies
- Using Humiseal Thinner 505 can aid in achieving better penetration tight spaces and ensuring complete coverage.
Repair and Rework:
- Humiseal Thinner 505 can be used for rework and repair of conformal coatings.
- It allows for the adjustment of viscosity when reapplying coatings to specific areas or components.
Consistency Control:
- Using it helps maintain consistent coating properties across different batches and production runs, ensuring reliable and repeatable results.
It's important to note that Humiseal Thinner 505 is specifically designed for use with Humiseal conformal coatings and should not be used with coatings other manufacturers without proper compatibility testing. Always follow the manufacturer's recommendations and guidelines for accurate usage and application.
HumiSeal Thinners 505 Appilication notes:
HumiSeal Thinners 505 are flammable and the following standard safety precautions should be observed:
- Use only in well-ventilated areas.
- Protective gloves and goggles should be worn.
- In case of prolonged skin contact, wash with water.
- In case of eye contact, flush with water and contact physician.
- Avoid prolonged breathing of vapors.
- Unused portions of HumiSeal® products must be disposed of in strict compliance with Local, State, and Federal laws governing such matters.
- Consult the Material Safety Data Sheet (MSDS/SDS) for more specific product information.
- Storage, keep the container tightly closed. Shelf life is unlimited in close container. Keep away direct sunlight and other sources of heat or ignition; do not smoke in storage areas.
Where to buy Humiseal Thinner 505 authentic:
With our reputation, Hicotech has gained the trust of many customers. Contact us now for consultation and to receive the best price for Humiseal Thinner 505 product.
