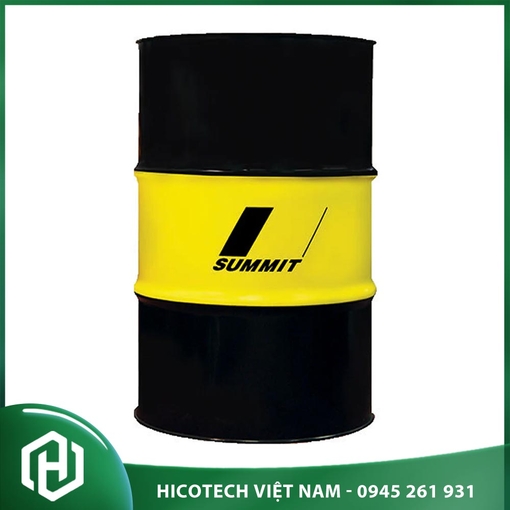

Kluber Summit RHT FG 68, your requirements and our solution
As an operator of ammonia refrigeration compressors you want your refrigeration units to operate reliably and efficiently. To support you in this, we have developed Kluber Summit RHT FG 68 based on highly refined and hydrogenated white oils especially for the lubrication of ammonia refrigeration compressors.
As Summit RHT FG 68 is highly refined, the oil carryover is considerably lower than with conventional mineral oils. This will help you to reduce oil consumption.
The viscosity of Kluber Summit RHT FG 68 remains stable during use since it contains only a small amount of highly volatile hydrocarbons. Its high evaporation stability prevents viscosity increases and thus premature oil change.
The hydrogenated base oil is chemically stable and was designed in particular to withstand the influence of ammonia. While conventional mineral oils tend to blacken when reacting with ammonia and deposits tend to form in the refrigeration circuit, this is not the case with Kluber Summit RHT FG 68. Oil change intervals can be extended significantly. Due to the low solubility in ammonia, Kluber Summit RHT FG 68contributes to refrigeration efficiency.
Experience has shown that RHT FG 68 can be used with evaporator temperatures down to -33 °C depending on the operating conditions.
It is registered as NSF H1 and therefore complies with FDA 21 CFR 178.3570. Kluber Summit RHT FG 68 was developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries.
Kluber Summit RHT FG 68 - Your benefits at a glance
- Kluber Summit RHT FG 68 is registered under NSF H1, making it suitable for use in food-processing and pharmaceutical industries, and it complies with FDA 21 CFR Sec 178.3570.
- The oil's low solubility in ammonia enables efficient refrigerator operation.
- It reduces oil consumption by minimizing oil carryover compared to naphthene-based mineral oils.
- The refrigeration system achieves high efficiency due to reduced oil deposits.
- Easy changeover is possible due to its neutral behavior towards seals.
Technical data of Kluber Summit RHT FG 68
Product data | Klüber Summit RHT FG 68 |
---|---|
Article number | 050139 |
NSF-H1 registration | 153 518 |
Appearance | Clear |
Colour space | Colourless |
Density, DIN 51757, 20 °C | Approx. 0.87 g/cm³ |
Flash point | >= 230 °C |
ISO viscosity grade, DIN ISO 3448 | 68 |
Kinematic viscosity, 40 °C | Approx. 68 mm²/s |
Kinematic viscosity, 100 °C | Approx. 8.7 mm²/s |
Pour point, DIN ISO 3016 | <= -33 °C |
Viscosity index, DIN ISO 2909 | >= 90 |
Minimum shelf life | Approx. 36 months |
Kluber Summit RHT FG 68 application
Kluber Summit RHT FG 68 is used for the lubrication of screwtype and reciprocating piston compressors in industrial refrigeration installations.
Kluber Summit RHT FG 68 application notes
Drain old oil the whole circuit of the refrigeration compressor while still warm. We recommend replacing all oil filters and oil separators and completely drain oil traps of the refrigeration circuit. Then refill the compressor with Kluber Summit RHT FG 68.
Kluber Summit RHT FG 68 is miscible with many refrigeration oils based on mineral oil, alkylbenzenes and PAO and therefore can be used to top up such oil fills. We recommend checking miscibility prior to using Kluber Summit RHT FG 68. The full performance capacity of Klüber Summit RHT FG 68 will only come to bear with a complete change of the oil and filters.
Kluber Summit RHT FG 68 is neutral towards most chloroprene and neoprene seals typically used in refrigeration equipment. It is less soluble than naphthene based mineral oils, which reduces the influence on the swelling behaviour of the seals to a minimum.
In some rare cases, a changeover naphthene-based refrigeration oils to Klüber Summit RHT FG 68 may lead to leakages as the oil change may cause seals to shrink to their original size.
Where to purchase authentic Kluber Summit RHT FG 68 ?
With our reputation, Hicotech has gained the trust of many customers. Contact us now for consultation and to receive the best price for Kluber Summit RHT FG 68 product.
