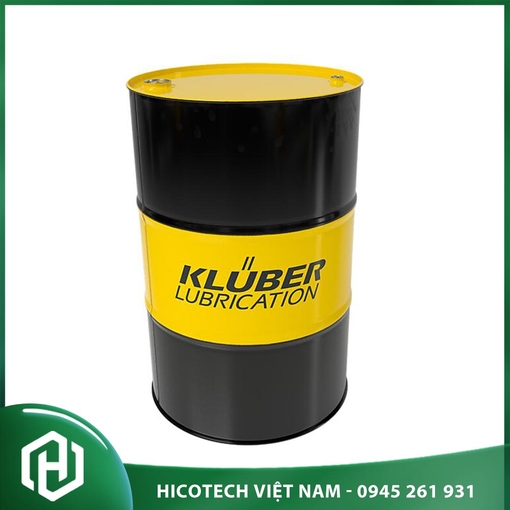

Kluberbio LG 39-700 N
Kluberbio LG 39-700 N Your requirements - our solution.
Are you a manufacturer or operator of open gear drives, jack-up lifting systems or other on-board equipment that is frequently in contact with sea water? In that case you are likely to be interested in obtaining an eco-friendly, high-performance operating lubricant.
Our Kluberbio LG 39-700 N is a high-performance grease with a new type of base oil and additive package. It combines very good eco-friendliness with high load-carrying capacity, good antiwear and anticorrosive effect and excellent adhesion to surfaces.
The high-viscosity base oil of Kluberbio LG 39-700 N comes 100 % renewable resources. Kluberbio LG 39-700 N complies with the requirements for classification as an Environmentally Acceptable Lubricant (EAL) in terms of biodegradability, toxicity and bioaccumulation, as defined by the US Environmental Protection Agency for the "2013 Vessel General Permit".
Due to the lubricant's excellent low-temperature behaviour, it can be pumped in centralised lubricating systems down to -30 °C and sprayed even at 0 °C. These positive product characteristics enable you to use the lubricants over a wider temperature range than what is common with mineral-oil-based greases of the same base oil viscosity.
Kluberbio LG 39-700 N enables a further reduction of more than 50 % in lubricant consumption in jack-up lifting systems if spray application is used. This will further reduce your operating costs and is beneficial to the environment.
Kluberbio LG 39-700 N - Your benefits at a glance.
- Complies with the requirements for Environmentally Acceptable Lubricants as defined in Appendix A of the 2013 Vessel General Permit.
- Lower environmental impact in the event of leakage. The base oil consists of renewable raw materials and is ultimately biodegradable.
- Good low-temperature behaviour enables operation of open gear drives in cold conditions.
- Selected additives ensure longer component life and reduced wear.
- Cost reduction due to low consumption when applied by selected spraying systems.
- Meets requirements for OSPAR conformance, including Norway Yellow 1, Denmark (registration number 2458948) and Cefas E (registration number 27423).
Kluberbio LG 39-700 N product data.
| Product Data | Klüberbio LG 39-700 N |
|---|---|
| Article Number | 009054 |
| Vessel General Permit passed | Yes |
| Biodegradability (OECD 301 F) | >= 60% (within 28 days) |
| Chemical composition, type of oil | Natural ester |
| Chemical composition, thickener | Calcium soap |
| Lower service temperature | -30 °C / -22 °F |
| Upper service temperature | 100 °C / 212 °F |
| Colour space | Beige |
| Texture | Homogeneous |
| Density at 20 °C | Approx. 0.93 g/cm³ |
| Worked penetration, DIN ISO 2137, 25 °C, lower limit value | 355 x 0.1 mm |
| Worked penetration, DIN ISO 2137, 25 °C, upper limit value | 385 x 0.1 mm |
| Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C | Approx. 680 mm²/s |
| Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C | Approx. 90 mm²/s |
| Flow pressure of lubricating greases, DIN 51805-2, test temperature: -30 °C | <= 1,400 mbar |
| FZG scuffing test, based on DIN ISO 14635, A/2,76/50, scuffing load stage | > 12 |
| Four-ball tester, welding load, DIN 51350 pt. 04 | >= 5,500 N |
| Drop point, DIN ISO 2176, IP 396 | >= 100 °C |
| Minimum shelf life the date of manufacture | Approx. 24 months |
Kluberbio LG 39-700 N Application.
Kluberbio LG 39-700 N was developed for the lubrication of open gear drives and rack-and-pinion drives as well as for sliding surfaces with high surface pressure.
The product can be used in maritime applications requiring good eco-compatibility, a good anticorrosive effect and/or high load-carrying capacity, e.g. in open anchor winch drives, rack and pinions in jack-up lifting systems, slow-moving plain bearings, stern roller bearings on AHTS vessels or rudder systems.
Kluberbio LG 39-700 N Application notes.
Kluberbio LG 39-700 N can be continuously applied by means of transfer pinion lubrication, spray systems or by brush. The required lubricant quantity depends on the operating conditions in each individual case. Our sales engineers will be pleased to assist you in determining lubricating quantities.
Where to buy Kluberbio LG 39-700 N ?
With our reputation, Hicotech has gained the trust of many customers. Contact us now for consultation and to receive the best price for Kluberbio LG 39-700 N product.
Contact information:
Hotline/Zalo. 094 526 1931
Website. Hicotech.com.vn
Email: Sale@hicotech.com.vn
