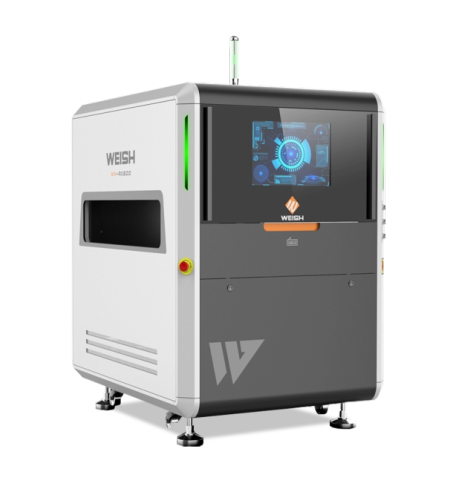

MINI LED direct display and backlight online AOI WS-AS500
MINI LED direct display and backlight online AOI WS-AS500 is a WEISH product manufactured by DongGuan WEISH Electronic Technology Co.,Ltd, Dongguan, China.
Product Features of MINI LED direct display and backlight online AOI WS-AS500:
☆ Suitable for the Pre-and-Post reflow appearance inspection of Mini LED directdisplay products, as well as the after-lighting detection of direct-display products
☆ Suitable for the Pre-and-Post reflow appearance inspection of backlight products, as well as the appearance inspection of Lens glue.
☆ Granite platform+casting gantry to realize high reliability and stability.
☆ Industrial camera+high resolution telecentric lens to ensure high accuracy.
☆ Accurate positioning and detection based on image-featured algorithm with low false call rate
☆ Applicable to the appearance detection of chips at minimum of 35mil.
☆ Applicable to test up to 100,000 chips.
Core Technology and Advantages of MINI LED direct display and backlight online AOI WS-AS500:
☆ Simple and Convenient Programming
Multi-component three-point array automatic generation function, ignoring the inclination of the sample board, realizes the rapid generation of huge component test windows.
☆ High Precision Positioning and Faster Calculation Speed
High-precision positioning and measurement can be realized by high- resolution lens+component-level pad positioning+specific component positioning algorithm, and at the same time, it has faster calculation speed.
☆ Specialized Lighting and Algorithm for Lens Glue Detection
Specialized lighting to ensure a clearer view of glue contour under inspection. Combined with contour comparison and Al deep learning algorithm, our machine can effectively measure the diameter and detect defects like unshaped glue, bubble, folds etc.
Technical Specification of MINI LED direct display and backlight online AOI WS-AS500:
|
Product Model |
WS-AS500 |
|
|
Image System |
Camera |
12MP/20MP Pindustrial camera |
|
Resolution |
6.3μm, 3.4μm , 2.3μm |
|
|
FOV |
1410mm( 12MP, 3.4μm); 2828mm(20MP，6.3μm) |
|
|
Lens |
Telecentric lens |
|
|
Lighting |
4 color ring shape LED (RGBW) |
|
|
Movement Structure |
X/Y Movement |
AC Servo |
|
Platform |
Granite |
|
|
Width Adjustment |
Automatic |
|
|
Transport Type |
Belt |
|
|
Board Loading Direction |
→Right or Right→(at point of order) |
|
|
Fixed Lane |
Front Lane |
|
|
Hardware Configuration |
Operating System |
Win 10 |
|
Communication |
Ethernet, SMEMA |
|
|
Power Requirement |
Single phase 220V，50/60Hz，5A |
|
|
Air Requirement |
0.4-4.6Mpa |
|
|
Conveyor Height |
900±20mm |
|
|
Equipment Dimensions |
L1170D16081580mm(without tower light) |
|
|
Equipment Weight |
900Kg |
|
|
PCB Size |
Size |
5060-510610mm |
|
Thickness |
0.6-6.0mm |
|
|
PCB Weight |
≤3kg |
|
|
Component Clearance |
Top clearance 25-60mm adjustment, Bottom clearance 45mm |
|
|
Clamping Edge |
3.0mm |
|
|
Inspection Criteria |
Component |
Wrong chip, Missing chip, Chip reverse, Chip deviation, Rotation, Chip flip, Solder bridge, Foreign material, Solder ball |
|
Lighting Detection |
Too bright, Too dark, Not bright |
|
|
Lens Glue Detection |
Excess glue, lnsufficient glue, Missing glue, Glue overflow, Eccentric distance, Foreign material, Bubbles |
|
|
Inspection Component |
Chip: 35mil and above |
|
|
Inspection Speed |
180-200ms/FOV |
|
