NG/OK buffer WS-CBF-5250A

Leave your phone number, we will call you back immediately

Mô tả sản phẩm

Bình luận & Đánh giá

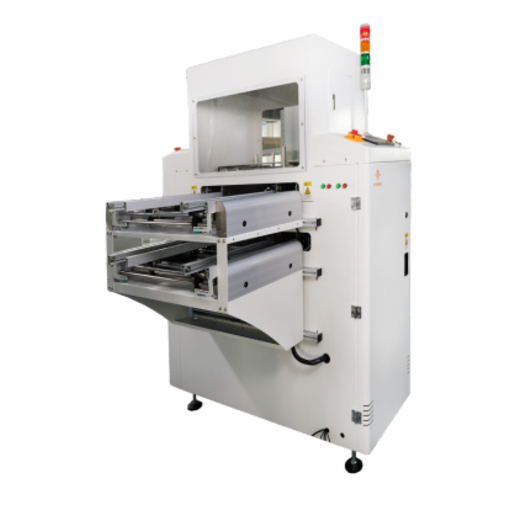

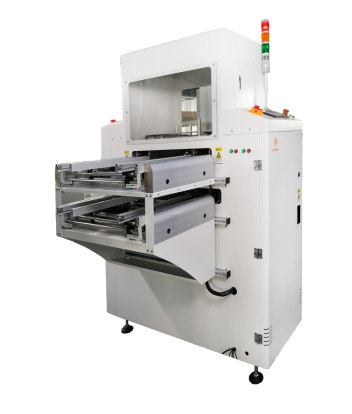

NG/OK buffer WS-CBF-5250A is a WEISH product manufactured by DongGuan WEISH Electronic Technology Co.,Ltd, Dongguan, China. This device is used after SPI or AOI inspection.

Functional Features of NG/OK buffer WS-CBF-5250A:

☆ Strong and stable design
☆ PLC control system
☆ Touch screen control panel
☆Effective design ensures that PCB is not crashed
☆Automatic detection of fault code display function
☆ SMEMA compatible

Technical Specification of NG/OK buffer WS-CBF-5250A:

Product Model	WS-CBF-5250A
PCB Size	5050-460330mm
Shape Size	110015901700mm
Weight	175kg
Loading time	Approx 5s
Material box replacement time	Circuit board capacity: 20 single-sided or specify
Cyclic time	Approx 10s
Layer spacing selection	1, 2, 3, 4 layer or specify
Power Supply and Electric Load	100-230V alternating current (Specify), Single-phase, Maximum 100 V.A.
Air pressure and air flow rate	4-6 bar, Up to 10 litres per minute
Transfer Height	900±20（or specify）
Direction of transmission	→Right or Right→Left
PCB Thickness	Minimum 0.6mm

Currently, Hicotech is operating as a distribution agent for genuine WEISH products in Vietnam. Along with a technical team that advises and answers all customer questions related to the product, Hicotech is committed to providing customers with high quality products and the best support service on the market.
