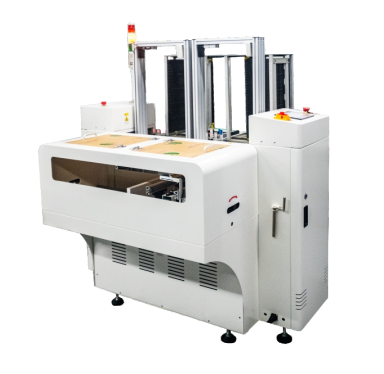

NG/OK Unloader WS-NGF-460A
NG/OK Unloader WS-NGF-460A is a WEISH product manufactured by DongGuan WEISH Electronic Technology Co.,Ltd, Dongguan, China. It is used to automatically receive OK/NG signals AOI after AOI detection in SMT production line. The PCB of OK is pushed directly the OK rack, and the plate of NG is pushed the rack after translation.
Functional Features of NG/OK Unloader WS-NGF-460A:
☆ Strong and stable design
☆ PLC control system
☆ Man-machine interface control panel, easy to operate
☆ Effective design ensures that PCB is not crashed
☆Automatic storage (NG/OK) PCB board
☆ Connect to the back end of AOI, separate the good board on
the production line and bad board
☆ SMEMA compatible
Technical Specification of NG/OK Unloader WS-NGF-460A:
|
Product Model |
WS-NGF-460A |
|
PCB Size |
5050-530460mm |
|
Shape Size |
230018901250mm |
|
Bunker Size |
535530570mm |
|
Weight |
380kg |
|
Loading time |
Approx 6s |
|
Material box replacement time |
Approx 30s |
|
Power Supply and Electric Load |
100-230V alternating current (Specify), Single-phase, Maximum 800 V.A. |
|
Air pressure and air flow rate |
4-6 bar, Up to 10 litres per minute |
|
Transfer Height |
900±20（or specify） |
|
Direction of transmission |
→Right or Right→Left |
|
PCB Thickness |
Minimum 0.4mm |
|
Quantity of bin |
Upper conveyor: 1PCS, Downward conveyor: 1PCS |
|
Step selection |
1-5 (10mm step distance) |
In addition, the Automatic loader equipment line has products with different sizes, suitable for the needs of factories such as: WS-NGF-250A, WS-NGF-330A, WS-NGF-390A.
Currently, Hicotech is operating as a distribution agent for genuine WEISH products in Vietnam. Along with a technical team that advises and answers all customer questions related to the product, Hicotech is committed to providing customers with high quality products and the best support service on the market.
