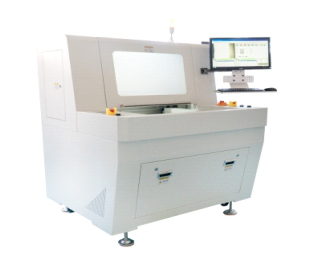

WS-QX350 PCBA cutting machine
WS-QX350 PCBA cutting machine is a WEISH product manufactured by DongGuan WEISH Electronic Technology Co.,Ltd, Dongguan, China.
Product Features of WS-QX350 PCBA cutting machine:
★ The double table entry and exit are all using Panasonic servo motor + screw and guide rail
★ It can be vacuumed up or down separately, or up and down at the same time, which is more flexible
★ The Z axis has automatic compensation, and the service life of the milling cutter can be increased by 3 times
★ The standard MES or ERP connection port can connect to the central database in real time
★ The barcode scanning gun can be connected to realize the instant upload of single board barcode information after the board is divided
★ Operating system: Windows 7
Advantages of upper vacuum system:
1. Able to work well on products with both tall and short components.
2. This is the most ideal method for general fixtures and accessories.
3. No air leakage - energy-saving design.
4. Use a small, compact, high-power vacuum pump instead of a bulky, high-flow, low dynamic pressure blower.
5. Very little dust will fall the gap between components and PCB, greatly reducing the probability of PCBA short circuit.
Product Specification of WS-QX350 PCBA cutting machine:
|
Product Model |
WS-QX350 |
|
Effective cutting size |
X:300mm，Y：350mm，Z：0-50mm |
|
Cut the function |
Straight, circular, circular tween |
|
Repeat Accuracy |
±0.01mm |
|
Shearing Precision |
±0.01mm |
|
Maximum movement speed |
XY 800mm/s、Z 350mm/s |
|
Maximum travel |
X:735 Y:400 Z:90mm |
|
Spindle speed |
40,000rpm adjustable, NSK 60,000rpm |
|
Cutting speed |
0~100mm/s adjustable |
|
Milling cutter size |
Ø0.8~3.0mm |
|
Work Power |
AC220V/380V 50/60HZ three-phase |
|
Cutting host size |
1200(W)1050(D)1700(H)mm |
|
Dust collector power |
2.2KW/3HP |
|
Dust collector size |
Upper vacuum 650(W)50(D)1400(H)mm Lower vacuum 600(W)700(D)1700(H)mm |
Currently, Hicotech is operating as a distribution agent for genuine WEISH products in Vietnam. Along with a technical team that advises and answers all customer questions related to the product, Hicotech is committed to providing customers with high quality products and the best support service on the market.
Contact Info:
Hotline / Zalo: 0945 261 931
Email: sale@hicotech.com.vn
