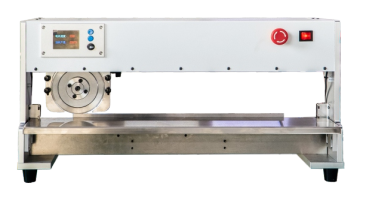

WS-ZD360/500/600 PCBA Round knife plate cutting machine
WS-ZD360/500/600 PCBA Round knife plate cutting machine is a WEISH product manufactured by DongGuan WEISH Electronic Technology Co.,Ltd, Dongguan, China.
Product Features of WS-ZD360/500/600 PCBA Round knife plate cutting machine:
Independent development, controlled by micro computer, with counter function,
Round blade moving speed 0-500, adjustable
Round blade moving distance 0-356/500mm(blade custom is available), blade height slight adjustment:0-2mm, suitable to PCB of different thickness,
which solves the problem of different depth of V-slot.
The moving blade (round blade) could set the position to stop , according to specific length of the PCB. The position to stop is to be set manually.
Maximum PCB width: unlimited, maximum PCB length (shear length) 360mm, PCB thickness: 0.2 to 2mm
Blades made by high speed steel imported, durable, can work again after polish.
Conveyor could be added as an option, which used to move out PCBs conveniently after shear is done
Light curtain and blade shell, double-security, keep operator safe
Advantages of WS-ZD360/500/600 PCBA Round knife plate cutting machine:
★ When PCB array is separated after soldering, its components and circuit might be hurt by internal stress. 360/500/600 shears PCBs by the moving blade, which could decrease internal stress occurred during the shear, internal stress keeps in range of 500-800uE, to avoid solder crack and component
★ 360/500/600 uses round blade (UP) and strip blade (Down).When start to shear, place PCB on strip blade, step on foot-plate gently, the round blade would move along the edge of strip blade, then PCB is separated totally, and the edge sheared is smooth and clean
Product Specification of WS-ZD360/500/600 PCBA Round knife plate cutting machine:
Product Model |
WS-ZD360 |
WS-ZD500 |
WS-ZD600 |
Machine size |
L650W340H380mm |
L730W340H380mm |
L830W340H380mm |
Package Size |
L680W380H420mm |
L780W380H420mm |
L860W380H420mm |
Net Weight |
37Kg |
40Kg |
55Kg |
Package weight |
50kg |
55kg |
60kg |
Power Supply |
AC220/110V 50-60HZ,40W |
||
Tool material |
SHD61 imported high speed steel |
||
Upper round knife |
Diameter 125mm |
||
Lower straight knife length |
360mm |
500mm |
600mm |
