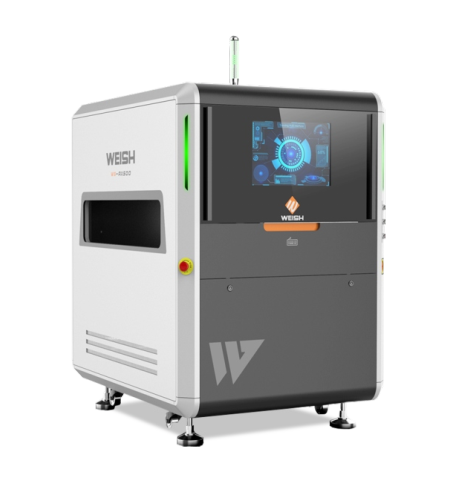

3D Solder Paste Inspection - WS-650M Standard type

Product Model

WS-650M

Detect the type of defect

Lack of tin, pinching, short circuit, offset, shape

Detection range of solder paste height

0～500μm

Minimum measurement size

180180μm

Minimum pad spacing

≥100μm

Detection principle

Multi color vector boundary measurement method & PSI

Height resolution

Theoretical value 0.67μm

Camera brand

IDS brand imported Germany

Camera pixels

5.3 million/12 million

Number of lenses

Double telecentric lens

Number of light sources

6 Light source

FOV size

28mm/35mm/37mm/41mm/50mm

Optical resolution

8μm/12μm /13.8μm/14.5μm/16.3μm

Detection speed

0.5s/FOV

Software Language

Chinese/English

Programming software

Offline and online programming

Programming time

5-10 minutes

Programming mode, data type

Gerber Data 274D/274X, PCB scanning image programming

Offline programming software

Standard offline programming software

Rack structure

Integral casting, screw rod, guide rail

Driving method

servo motor

Minimum PCB size

5555mm

Orbital mode

Single track

Maximum PCB size (mm)

400330

PCB parameters

0.5~5.0mm ≤5.0 Kg

PCB allows component height

Upper：20mm，Below：25mm

PCB process edge width

2~3mm

Rail width adjustment method

Manual/automatic width adjustment

Positioning and clamping method

Upper positioning, cylinder clamping

Rail height

900±20mm

Rail extension edge

It can save the board entrance connection table, length: 200mm, free gift

PCB transmission direction

to right/right to (factory set)

Computer host, monitor

i7 CPU, 16G, 1TB, 22' LCD (1920X1080)

Operating system

Windows 7 64 bits

Barcode scanning function

Camera direct scanning, optional

Equipment size

630(L)1620(D)1470(H)mm

Power specifications

AC190~230V 50/60 Hz 1KVA

Working air pressure

0.35~0.6mpa

Equipment weight

1300kg

Software upgrade service

Lifetime free upgrade to standard version

Warranty period

One year warranty for the entire machine

Training services

Free training

Spare parts warehouse

Shenzhen, Suzhou, Kunshan, Vietnam spare parts warehouses

Optional items

Barcode scanning device or software, BADMARK data output module, printing press communication, offline programming or maintenance workstation, SPC software customization, 3D projection detection, machine extended warranty service, software function customization, accuracy detection/calibration tools, NG/OKBUFFER function, dual monitor display
