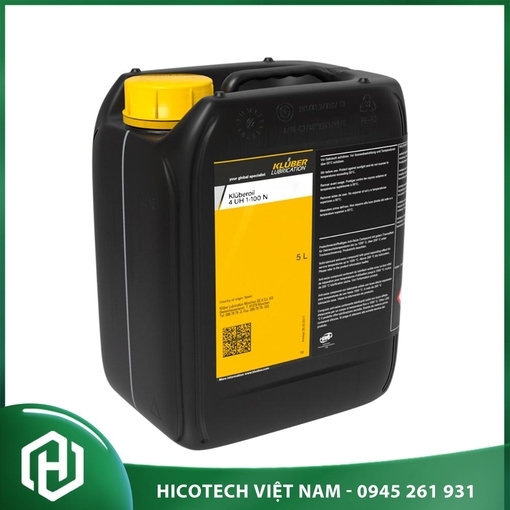

Kluberoil 4 UH1-100 N - Description
Kluberoil 4 UH1-100 N oils are lubricating oils based on polyalphaolefin. They are registered as NSF H1 and comply with FDA 21 CFR § 178.3570.
This oils meet the CLP requirements according to DIN 51 517 – 03. These lubricating oils exhibit a good scuffing load capacity and good antiwear protection for rolling bearings according to FAG FE 8. The corrosion protection properties of these oils are very good as is their ageing and oxidation stability. They also have a high resistance to shear and do not foam
Kluberoil 4 UH1-100 N Benefits for your application:
- Viscosity variants ISO VG 68 to 680 meet the requirements set forth in DIN 51 517, making them suitable for use in gearboxes without prior consent the gearbox OEM, as long as application notes are observed.
- Registered as NSF H1, these oils are safe for use in the food-processing and pharmaceutical industries, complying with FDA 21 CFR Sec 178.3570 regulations.
- ISO 21469 certified, ensuring compliance with hygienic requirements in your production plant.
- Synthetic polyalphaolefin base oil provides significantly prolonged service life compared to mineral and white oil, thanks to excellent ageing resistance and oxidation stability. This allows for extended service intervals and, in some cases, lifetime lubrication.
- Wide service temperature range allows for the use of just one viscosity grade for both high and low temperatures.
- Good viscosity-temperature behavior ensures the formation of a sufficient lubricating film, even under elevated or high temperatures.
- Offers excellent wear protection for both gear teeth and rolling bearings, ensuring the lubricated components achieve their calculated lifetime.
Technical data of Kluberoil 4 UH1-100 N
Product data | Klüberoil 4 UH1-100 N |
---|---|
ISO VG DIN 51519 | 100 |
Density | 850 |
Kinematic viscosity, at 40 °C [mm²/s], approx. | 100 |
Kinematic viscosity, 100 °C [mm²/s], approx. | 14 |
Viscosity index, DIN ISO 2909, approx. | >140 |
Flash point, COC, DIN ISO 2592, [°C] | >200 |
Pour point, DIN ISO 3016, [°C], approx. | < -36 |
Service temperature range, [°C] | -30 to 120 |
FZG fretting test, A/8.3/90, DIN ISO 14635-01, scuffing load stage | >12 |
Foaming characteristics, ASTM D 892, sequence I, II, and III [ml] | ≤ 100/10 |
Copper corrosion test, 24 h, DIN EN 2160, degree of corrosion 1-100 | 1-100 |
Ageing characteristics, ASTM D 2893, increase in viscosity [%] | < 6 |
Rolling bearing tester FE 8, D 7, 5/80-80, DIN 51 819-3, wear of rolling elements, [mg], wear of cage, [mg] | < 30, < 200 |
Kluberoil 4 UH1-100 N Application
- Kluberoil 4 UH1-100 N oils are used for the lubrication of friction points in food-processing and pharmaceutical machinery.
- They are especially suitable for the lubrication of spur, bevel and worm gears, bearings, spindles and joints, as well as of lift, drive and conveyor chains at low temperatures.
Kluberoil 4 UH1-100 N Application notes
- When used in gears, Kluberoil 4 UH1-100 N oils may be applied by immersion, immersion circulation or injection. Drip-feed lubrication and application by brush or oil can is also possible.
- UH1-100 N oils are miscible with mineral oils and polyalphaolefin oils. However, we recommend cleaning the oil circulation system or flushing it with the new oil prior to using Kluberoil 4 UH1-100 N for the first time.
- Especially with a view to the H1 requirements in the food processing industry, any mixing of Kluberoil 4 UH1-100 N oils with non-food-grade lubricants should be avoided.
Where to purchase authentic Kluberoil 4 UH1-100 N
With our reputation, Hicotech has gained the trust of many customers. Contact us now for consultation and to receive the best price for Kluberoil 4 UH1-100 N product.
