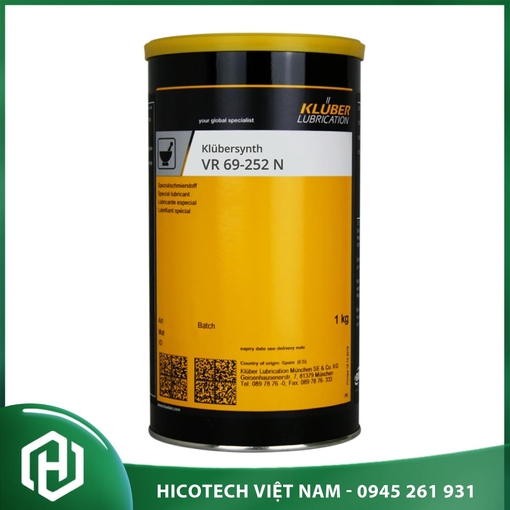

Klubersynth VR 69-252 N
Klubersynth VR 69-252 N Description
Klubersynth VR 69-252 N is a tailor-made, highly adhesive, light-colored lubricating grease based on fatty oil, calcium soap and PTFE. With a carefully selected combination of active substances, this lubricant offers very good performance and high functionality combined with a long service life.
Klubersynth VR 69-252 N clearly surpasses the load alternation requirement of 200,000 cycles at a closing force of 2.5 Nm and is therefore in full compliance with the European standard DIN EN 200. Klübersynth VR 69-252 N meets the new drinking water and plastics guideline (KTW) of the German Umweltbundesamt (Federal Environmental Agency) and conforms to the current French positive list for drinking water applications ACS. These benefits help meet all your requirements.
Benefits for your application.
- Longer component life due to less friction and wear, especially in brass spindle valves.
- Prevention of stick-slip at high tightening torques and 500,000 load cycles.
- A lubricant for all components meeting all technical, design and chemical requirements, e.g. the German KTW and the French ACS Guidelines.
- Cost-saving as lubricant can be applied by brush or using fully automatic mass application techniques.
Klubersynth VR 69-252 N Product information (TDS)
| Product data | Klubersynth VR 69-252 N |
|---|---|
| Article number | 012273 |
| NSF-H1 registration | 152 147 |
| Lower service temperature | -25 °C / -13 °F |
| Upper service temperature | 100 °C / 212 °F |
| Density at 20 °C | Approx. 0.97 g/cm³ |
| Colour space | Beige |
| Worked penetration, DIN ISO 2137, 25 °C | Lower limit value: 280 x 0.1 mm |
| Worked penetration, DIN ISO 2137, 25 °C | Upper limit value: 310 x 0.1 mm |
| Special lubricating grease for drinking water taps containing e.g. EPDM and/or NBR elastomers | Klübersynth VR 69-252 N |
| Shear viscosity at 25°C, shear rate 300 s-1 | Upper limit value: 8,000 mPas |
| Shear viscosity at 25 °C, shear rate 300 s-1 | Lower limit value: 4,000 mPas |
| Copper corrosion, DIN 51811, (lubricating grease), 24h/100°C | 1 - 100 corrosion degree |
| Minimum shelf life the date of manufacture | Approx. 12 months |
Application Klubersynth VR 6
- Klubersynth VR 69-252 N is used for the lubrication of all friction points in valves subject to mechanical loads and in some cases also for ceramic valves containing EPDM or NBR elastomers. Further applications are in locking and control valves such as plug or ball valves, flaps, slides or other valves, and in shower and heating valves and fittings.
- Klubersynth VR 69-252 N may normally also be used for the lubrication of seals whenever an EPDM-compatible grease is required that is approved for drinking water applications.
Klubersynth VR 69-252 N Application notes
Klubersynth VR 69-252 N can be easily applied by means of brush, sponge, spatula, grease gun or other usual metering equipment.
