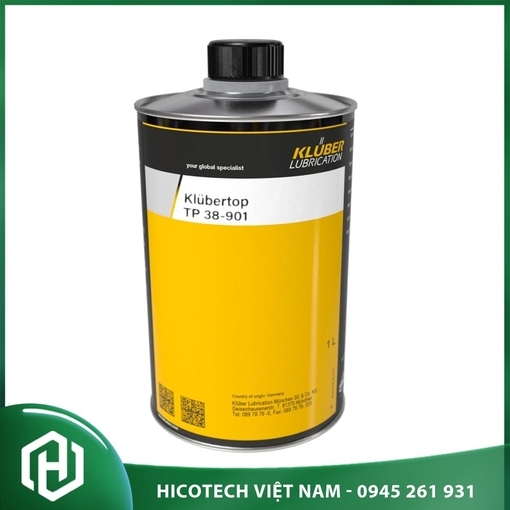

Klübertop TP 38-901 Description
Klubertop TP 38-901 is a water-miscible, thermosetting, single component bonded coating for the food-processing, drinking water and pharmaceutical industries.
The dry film provided by Klubertop TP 38-901 fulfils the following requirements:
- European and German regulations on food-grade products (FABES certificate CON 6222-2018).
- Klubertop TP 38-901 is NSF H1-registered and therefore complies with FDA 21 CFR § 178.3570. The lubricant was developed for incidental contact with products and packaging materials in the food-processing, cosmetics, pharmaceutical or animal feed industries. The use of Klübertop TP 38-901 can contribute to increase reliability of your production processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP.
- Requirements of the Guideline for the Hygienic Assessment of Organic Coatings in Contact with Drinking Water with regard to seals and equipment of pipes. Furthermore, it fulfills the requirements for repair systems for tanks in domestic and other installations with 1/100 of the area of the tank.
Benefits when using Klubertop TP 38-901
- Suitable for food-processing, drinking water, and pharmaceutical industries.
- NSF-H1 registered and compliant with EU regulations for food grade products.
- Approved for use with drinking water according to DVGW worksheet W 270 and holds ACS and WRAS certificates.
- Meets requirements for organic coatings in drinking water applications.
- Provides hygienic and dry lubrication, avoiding oil or grease contamination.
- Prevents sticking of sealing rings and other elements during automatic feeding.
- VOC filter not required as it is water-based.
- Cost-saving and efficient compared to lubricant-free procedures.
- Reduces assembly forces by up to 40%, enabling clean and easy assembly.
- Shorter downtimes and increased production volumes due to low friction coefficients.
- Easy handling of small mass-produced parts.
Technical data of Klubertop TP 38-901
Product Data | Klübertop TP 38-901 |
---|---|
Article Number | 099030 |
NSF-H1 Registration | 131 545 |
Lower Service Temperature | -40 °C / -40 °F |
Upper Service Temperature | 200 °C / 392 °F |
Appearance | Transparent |
Colour Space | White |
Runout Time (4 mm nozzle) | Approx. 35 s |
Density (at 20 °C) | Approx. 1 g/cm³ |
Heat-Setting Time | Approx. 20 min |
Yield (10 micrometer thickness) | Approx. 17 m²/l |
Friction Coefficient (vmax=0.243 mm/s, F=50-300 N) | Approx. 0.04 |
Friction Coefficient (µ) | Approx. 0.22 |
Minimum Shelf Life | Approx. 12 months |
Klubertop TP 38-901 Application
- Klubertop TP 38-901 can be used, for example, to reduce assembly forces in a clean way and ensure problem-free automatic feed without a stick effect.
- Food-processing industry:
Components where contact with the food product cannot be ruled out (e.g. bottle chain conveyors or seals).
- Drinking water industry:
Seals and equipment in contact with drinking water For applications with technically unavoidable food contact, it is important to follow the heat-setting conditions stated in this product information.
- It is important to follow the heat-setting conditions stated in this product information.
Klubertop TP 38-901 Application notes
- Klubertop TP 38-901 tends to settle on the bottom and should be stirred before use.
- After stirring, filter the product (e.g. using a nylon filter with a pore size of 125 - 150 μm).
- The product can be applied by spraying, dipping or by brush.
