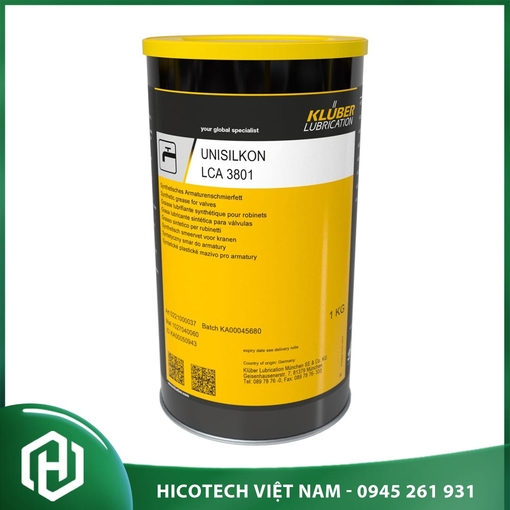

UNISILKON LCA 3801 Description
- UNISILKON LCA 3801 is a special lubricating grease neutral in odour and taste and based on silicone oil and a calcium soap. It has been developed primarily for valves and fittings as well as sanitary applications.
- It provides effective wetting even in narrow lubricating gaps and friction points that are difficult to reach. Uniform operational smoothness is achieved with cold or hot water as the viscosity is not strongly influenced by changing temperatures, e.g. in single-lever mixers with specific surface pressures up to approx. 4 N/mm², depending on the design of ceramic cartridges.
- It is resistant to many media used in the beverage industry and to acid or alkaline disinfectants but not resistant to most organic solvents and strong acids or lyes.
UNISILKON LCA 3801 Benefits for your application.
- For all types of material combinations like ceramics/ceramics, metal/plastic or elastomers
- With load-bearing areas between 50 and 99.9 %, good wetting behaviour and good adhesion to different material surfaces, the product ensures consistent smooth operation over the entire lifetime of the component.
- Operating torque nearly constant under changing temperatures, enabling constant smooth operation up to an admissible surface pressure of approx. 4 N/mm².
- Very good resistance to both cold and hot water.
- Good thermal stability even when applied in a thin film ensures a long functional lifetime of ceramic disc cartridges – Good sealing effect and backflow "lubricant depot".
- Compatible with most ceramics, metals, elastomers and plastics.
- Approved acc. to DGW-KTW (UBA guideline), NSF 61, ACS for use in all friction points exposed to water or in permanent contact with drinking water.
UNISILKON LCA 3801 information, technical data.
data | UNISILKON LCA 3801 |
---|---|
Article number | 022100 |
Chemical composition, type of oil | Silicone oil |
Chemical composition, thickener | Calcium soap |
Lower service temperature | -40 °C / -40 °F |
Upper service temperature | 140 °C / 284 °F |
Colour space | Beige |
Texture | Fibrous |
Texture | Homogeneous |
Density at 20 °C | Approx. 0.97 g/cm³ |
Worked penetration, DIN ISO 2137, 25 °C | Lower limit value: 295 x 0.1 mm |
Worked penetration, DIN ISO 2137, 25 °C | Upper limit value: 325 x 0.1 mm |
Shear viscosity at 25 °C, shear rate 300 s-1 | Lower limit value: 12,000 mPas |
Shear viscosity at 25°C, shear rate 300 s-1 | Upper limit value: 20,000 mPas |
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 25 °C | Approx. 5,000 mm²/s |
Copper corrosion, DIN 51811, lubricating grease, 5h/100 °C | 1 - 100 corrosion degree |
Water resistance, DIN 51807 pt. 01, 3 h/90 °C | Rating: 0 - 90 |
Minimum shelf life the date of manufacture | Approx. 36 months |
UNISILKON LCA 3801 Application
- UNISILKON LCA 3801 is used in the entire sanitary field for the lubrication of all kinds of ceramic disc cartridges (surface pressure >= 0.4 to 4 N/mm²), ceramic head parts, mixing taps, piston and ball mixers.
- It can also be used as a sealing grease and assembly aid for valves and fittings in domestic and heating installations with exposure to cold and hot water or water vapour.
UNISILKON LCA 3801 Application notes
- UNISILKON LCA 3801 is neutral towards ceramics, metals, thermoplastics (e.g. ABS, PC) as well as elastomers (e.g. NBR, EPDM, VMQ).
- Owing to the many different compositions of elastomers and plastics, we recommend checking their compatibility prior to series application.
- UNISILKON LCA 3801 can be easily applied by brush, spatula, sponge...
